C3i – 3.5″ CAN Bus Display with Color LCD (70032) – J1939/T4 Software
February 26, 2025
C3l – 3.5″ Color Display – with Universal Engine Monitor software
$675.00

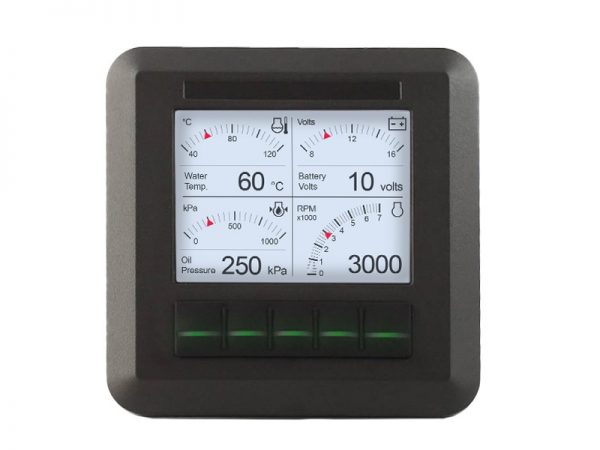

The C3l is an addition to the rugged CAN bus display family from Veethree.
It is a fully sunlight viewable 3.5inch colour display, which is compact and highly flexible with a low profile bezel.
It has a larger more accessible and stylized keypad, which is backlit for ease of operation at night.
With 7 analogue inputs, 4 relay outputs combined with 2 digital inputs, 1 Tachometer input, 2 CAN input connections, plus a USB port the C3 offers maximum functionality.
Ethernet can be supported via a USB to Ethernet adapter.
This comes with Veethree’s Engine Monitor standard software for receiving and displaying J1939 engine and transmission data, including common Tier4 parameters, with active alarms (from DM1) & NMEA 2000 data, where supported.
The C3l is an addition to the rugged CAN bus display family from Veethree.
It is a fully sunlight viewable 3.5inch colour display, which is compact and highly flexible with a low profile bezel.
It has a larger more accessible and stylized keypad, which is backlit for ease of operation at night.
With 7 analogue inputs, 4 relay outputs combined with 2 digital inputs, 1 Tachometer input, 2 CAN input connections, plus a USB port the C3 offers maximum functionality.
Ethernet can be supported via a USB to Ethernet adapter.
This comes with Veethree’s Engine Monitor standard software for receiving and displaying J1939 engine and transmission data, including common Tier4 parameters, with active alarms (from DM1) & NMEA 2000 data, where supported.
Veethree Warranty Statement (“Veethree”): Veethree warrants its products to be free from defects for a period of ONE year from the date of original retail purchase.
Veethree’s sole responsibility under this warranty is limited to the repair or replacement of product which is, in Veethree’s opinion, defective. Veethree is not responsible for charges connected with the removal of such product or reinstallation of replacement or repaired parts.
We will have no obligations under this warranty for any product which:
* has been improperly installed
* has failed or has been damaged due to an accident or abnormal
operation including racing, misuse, or alterations outside our factory
* has been repaired or modified by entities other than Veethree
* has been used with other product(s) which, in Veethree’s opinion, are
incompatible with the Veethree product
IN NO EVENT WILL VEETHREE BE LAIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
| Weight | .45 kg |
|---|
